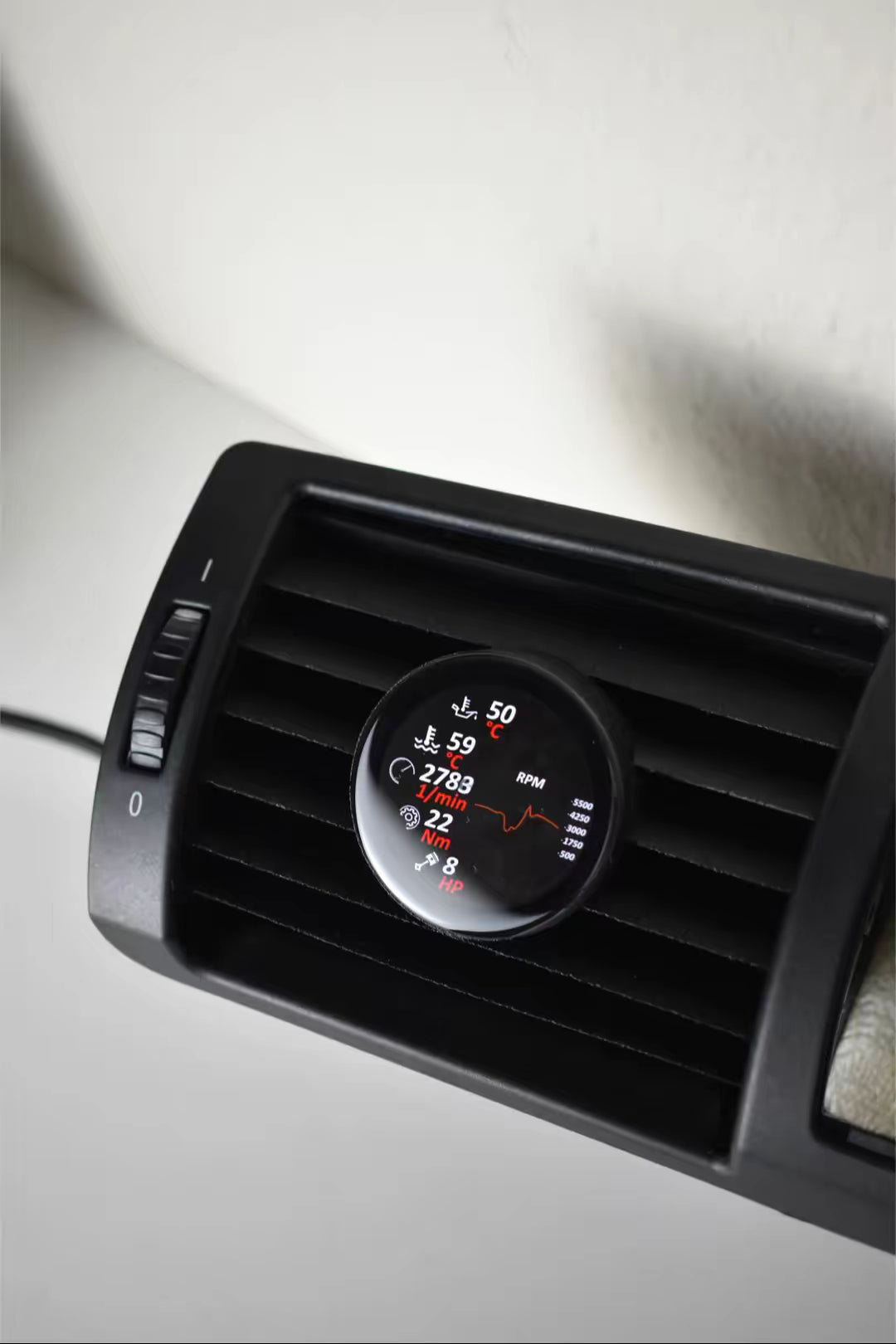

I6- Data Display E8X 1 Series LHD

🔧

Inline6/Core display data display for BMW

Installation/Operating Instructions

E8x 1 Series E81 E82 E87 E88

Gain deeper insights into your vehicle with the latest GEN3 data display!

The high-resolution 1.43” OLED display (466×466 pixels) provides a completely new driving experience with razor-sharp graphics and an intuitive user interface. All relevant vehicle data—from oil temperature to accelerator pedal position—are displayed in real time and with the highest precision at a glance.

Features:
- Perfect black thanks to the AMOLED display
- 6 different dashboards
- Performance Dashboard (time measurement via combined speedometer)
- 2 dashboards with individually adjustable values
Maximum values ​​are stored until the ignition is switched off.
- Read and clear fault codes from the engine control unit
- Automatic brightness during day/night
- Locking the values
- Service mode, allowing other testers to query data
- Power/torque correction option in 0.5% increments
- Starts when the ignition is switched on / Switches off with a delay after the ignition is switched off
- Firmware update via WiFi

The following values ​​are available:

Petrol & Diesel
✅ Torque
✅ Speed
✅ Performance
✅ Speed
✅ Coolant temperature
✅ Oil temperature (oil sensor required for diesel engines M47, M57, N47)
✅ Board voltage
✅ Wheel speed sensors
✅ Steering angle
✅ Range
✅ Tank capacity
✅ Accelerator pedal position
✅ Mileage

Diesel (gasoline engine in development)
✅ Boost pressure
✅ Lambda
✅ Rail pressure
✅ Intake temperature
✅ Exhaust gas temperature
✅ DPF back pressure
✅ DPF soot mass

⚠️ Disclaimer:

Installation and commissioning of the components are at your own risk. We accept no liability for damage caused by improper installation, incorrect use, or failure to follow the installation instructions.

Likewise, we accept no responsibility for any damage to the vehicle or its electronics resulting from incorrect installation.

If necessary, have it installed by qualified personnel.
